1 Metre high multifuel stove 100KG double burn.
All stainless marine stove with cooking hob & fiddle rail - more on www.stovedesign.com/kapitan
A fortress sized burner 100KW - Vital stats 1600W x 1200H x 800mm deep, 350KG
Construction in heavy boilerplate and refractory alloy - Seven 4" (100mm) pipes rise up through the back and out the bell mouthed vents at the front, heating cold air taken from under the base and projecting it hot into the room.
'Rocket' model 840 in action, central London in new build wide-beam luxury boat. More... stovedesign.com/rocket
Rocket 840 triple burn stove in polished stainless steel
A curvacious stove in chrome
Vital stats - 500 x 500 x 1000mm high, 12KW, 50KG, all stainless construction, double combustion, with large top-loading cooking hob... More on stovedesign.com/marilyn
Air inlet control valve
Door handle detail
Hob with screw-in handle + flue control valve
Designed for off-grid & boat use, this solid fuel cooker features a triple-burn multifuel burner with airwashed glass & large oven, two hotplates and a central heating boiler.
Dimensions - 400 x 400 x 800mm wide (body) Leg length to your spec (recommend 200mm). Weight 95KG. This solid fuel cooker features removable hobs, the larger L.H one for main cooking, the RH for simmering, there is also a balance control for heat to hobs vs oven (top offcentre), air inlet control (bottom left) and flue butterfly valve..
More on stovedesign.com/wasp800
A commission to make an ancient range installed in the servants quarters of a grand Oxford town house functional again, this was accomplished by designing a modern clean-burn inset (centre) which also provides heat to the adjacent ovens, the bare inset is shown next image below.
Wood & coal version with removable grate & extra air contron (under front edge)
Two years later... Note blue/mauve patina
versatile garden heater/BBQ from an upcycled lpg bottle
A suspended stove design......
original commission was suspended from the roof by nautical rigging and anchored to a 100KG+ washer one metre diameter, and three inches thick.
TIG welded stainless steel construction, the door components are profile cut heavy steel plate and there is a refractory stainless liner/heat exchanger to facilitate clean combustion & efficiency.

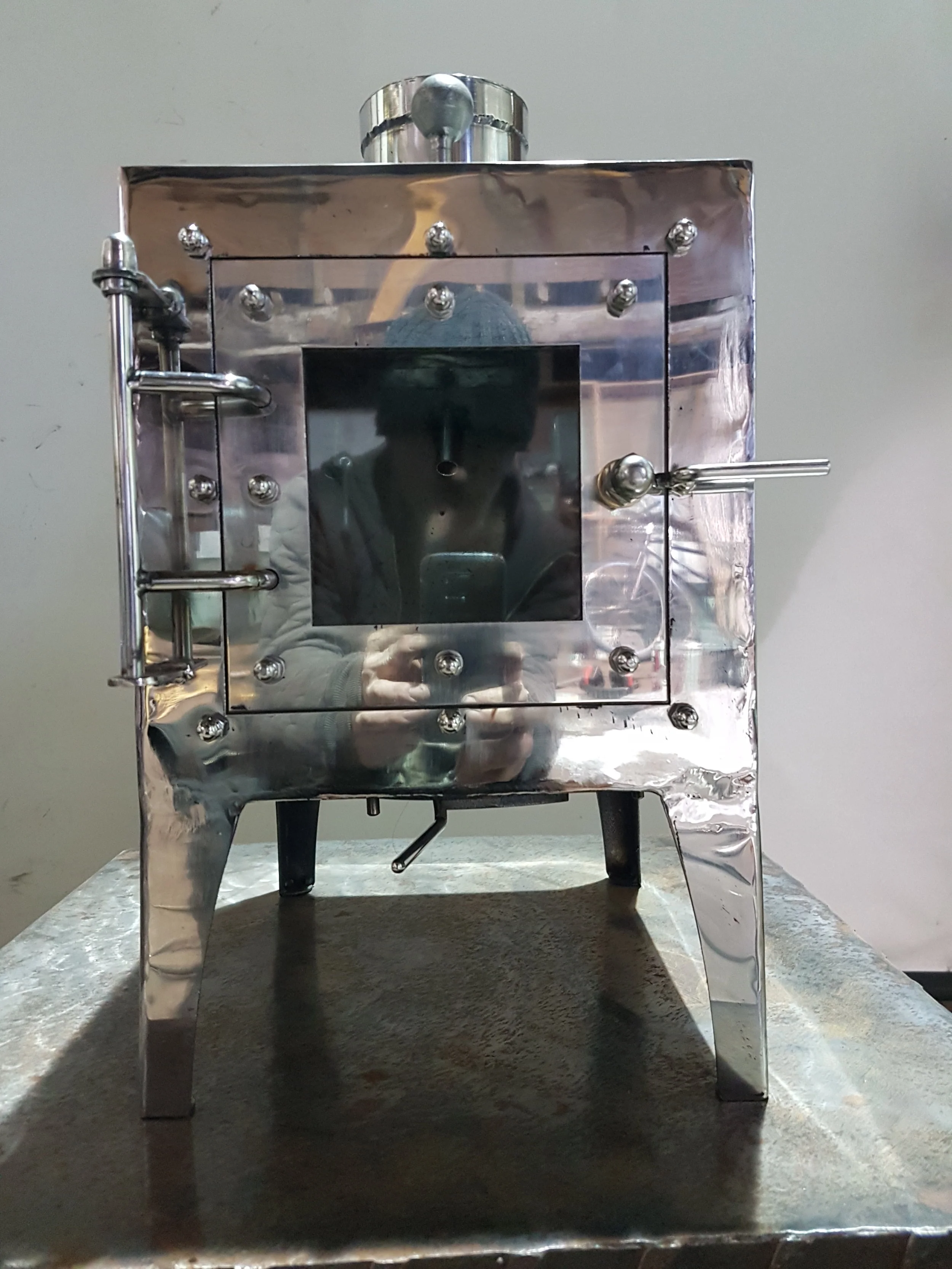

A small burner weighing only 15KG and made entirely from corrosion proof parts. Designed for sailing yachts and boats from 30ft, it features: Fiddle rail, Airwashed glass, clean burn, cooking plate & super efficient burn with separate controls for air in & flue out.
Dimensions 300L x 300W x 300mm High, Output 2-5KW. Total weight 13KG (not including mounting plate) more on www.stovedesign.com/kapitan
The stove has a removable recessed hob with a 200mm deep cooking area (boils kettle in less than 5 mins) and very accurate heat control for general cooking. When the controls are set to low heat output the stove will give a genuine overnight burn with a good fill of fuel.
